X452/A PLUG Square plug

Fittings - Screwed end - PLUG Square plug
X452/A

X452A

Print the data sheet Request quotation

Code

X452/A

Use

Corrosive ambient stainlees steel fittings

Description

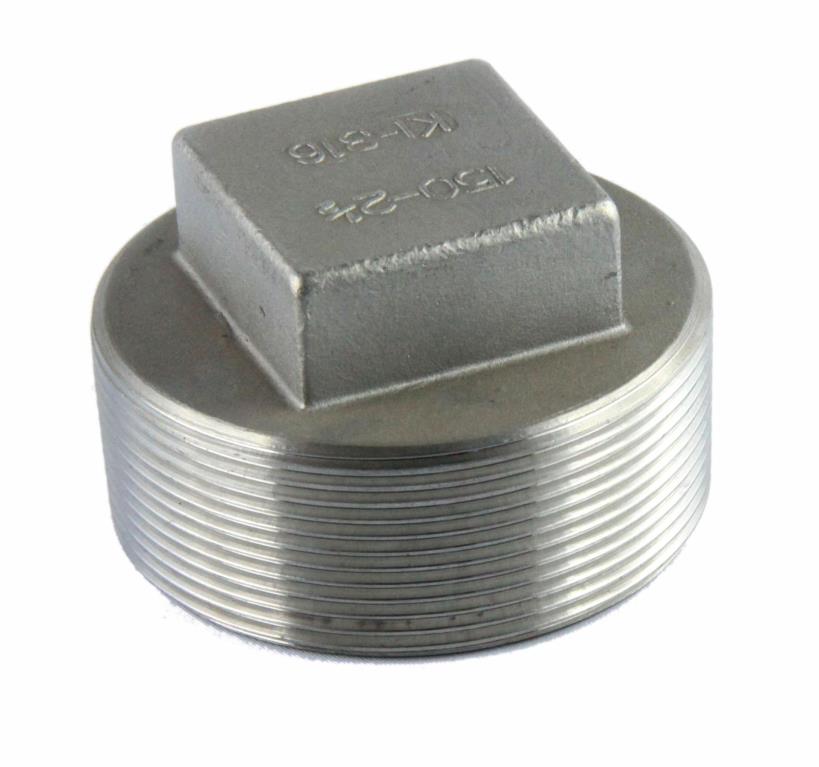

Microfusion stainless steel aisi 316 Square head plug

Using range

Working Temperature -20 +200° C (-4 +392°F)
PN 10 bar (150 psi)

Models

Options

Available sizes

VAR G L CH Lotto
18 1/8" BSPT - - 200
14 1/4" BSPT - - 200
38 1/2" BSPT - - 200
12 1/2" BSPT - - 200
34 3/4" BSPT - - 100
1 1" BSPT 32 20 100
114 1"1/4 BSPT - - 50
112 1"1/2 BSPT 36 25 50
2 2" BSPT 42 34 20
212 2"1/2 BSPT - - 20
3 3" BSPT 51 46 20

Information

Chemical compatibility

Which elements are suitable with materials of process wetted parts
Leggi

Picture, dimensions and features could change at any time
